Thanks for stopping by! These pictures were kind of thrown together real quick. Please excuse the quality of the 900 dollar (1995 price) digital camera as it's only 200x200 resolution.
View sample Image

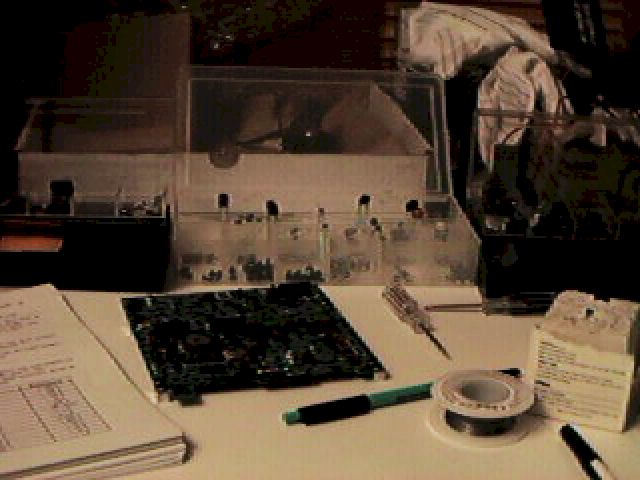

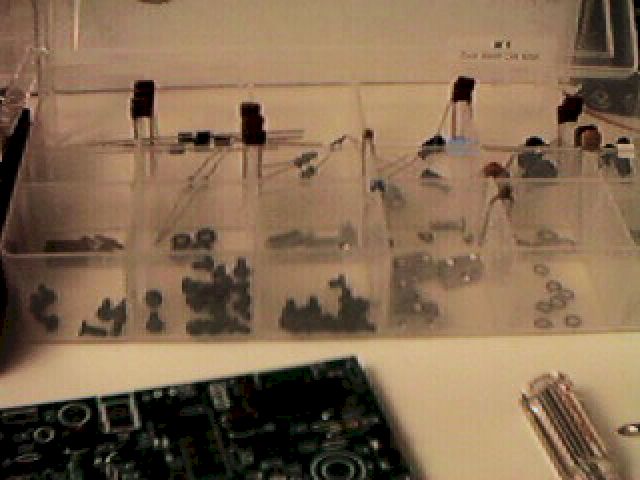

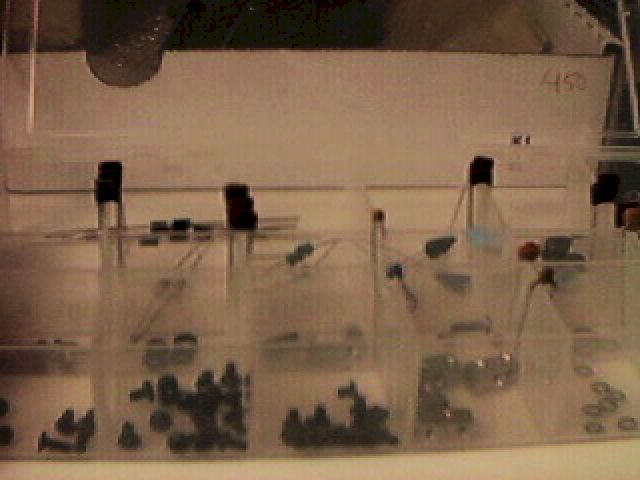

RadioShack Parts Tray

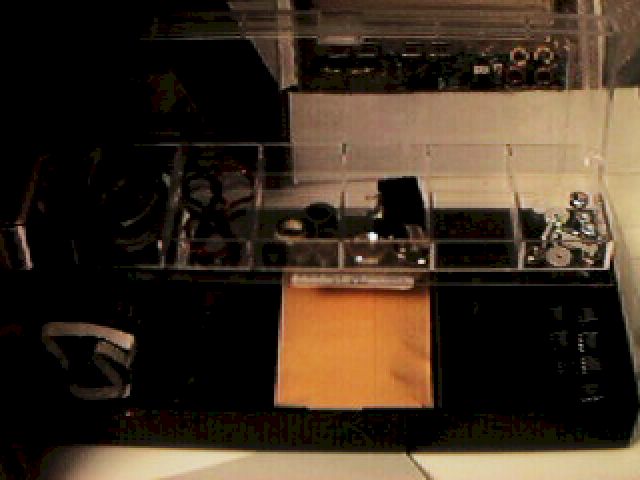

If you adjust your contrast you can see the two black trays to either side of the RS tray. ESD safe material can be used on the bottom of the cells.

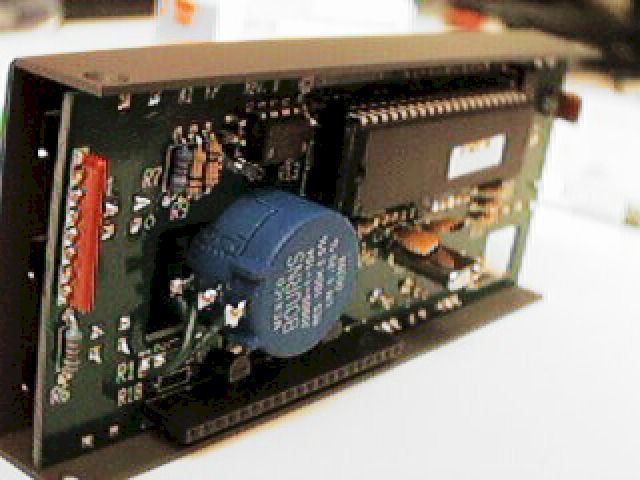

Back of front panel after assembly.

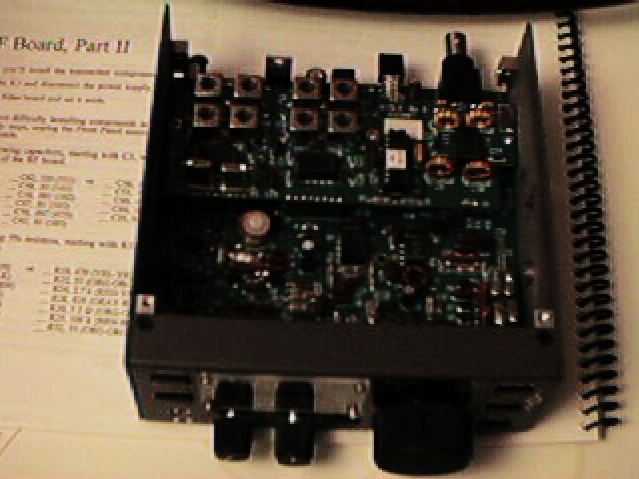

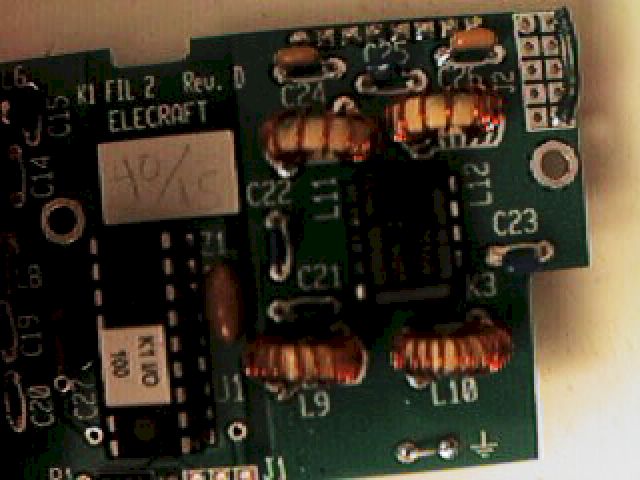

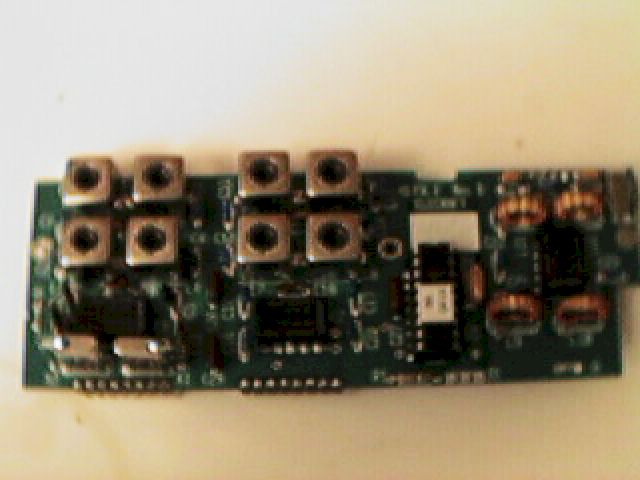

40 / 15 Filter Board

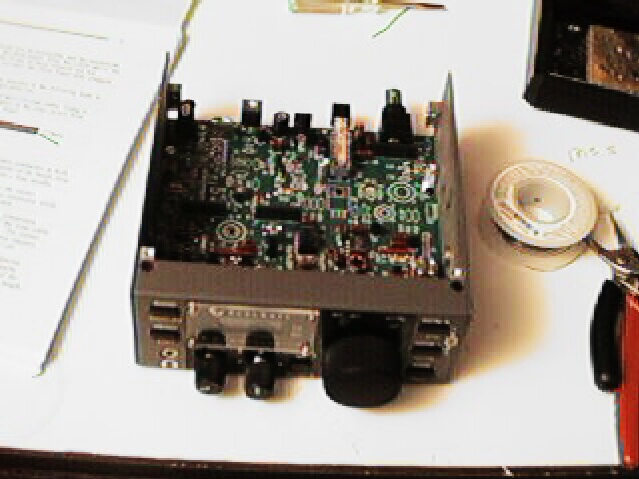

This is the operating position of the K1's very first contacts from the back yard!

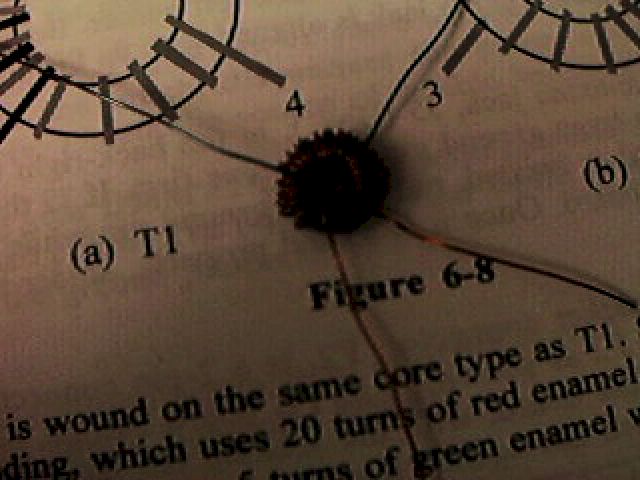

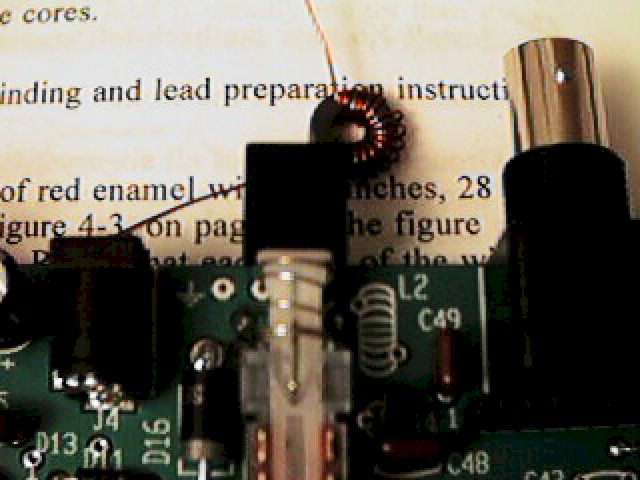

Close up of torroid repair job (I really need a better digital camera!)

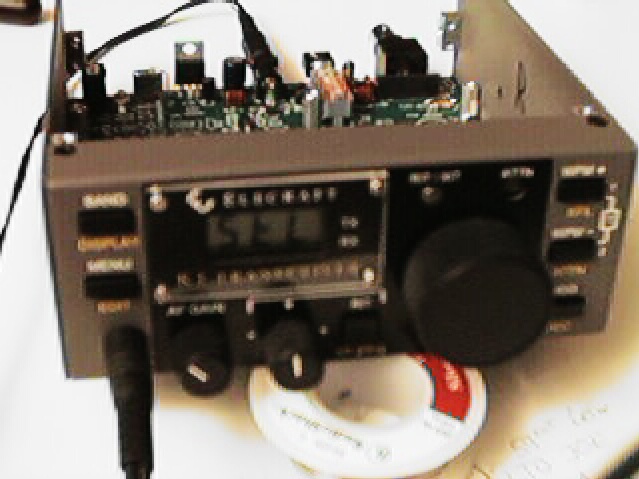

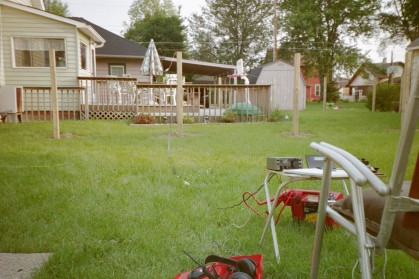

Here we are operating the K1 for the very first time in the back yard!
This picture was taken during my first portable contact "in a far away land" the woods of Dallas Co, Missouri! Worked WA with 1 watt on 15 meters!
